Why Your Furnace Keeps Tripping the Breaker

A one-off breaker trip is usually harmless. Maybe the system pulled a little extra power starting up, or maybe something else was running on the same circuit. But when the breaker trips several times in a row or immediately after you reset it, that’s your furnace saying, “I’m overheating,” or “I’m pulling too much current,” or “There’s a short somewhere.”

Modern furnaces are pretty smart. When they detect overheating or electrical overload, they shut themselves down to prevent damage. So if your furnace breaker keeps tripping, that’s usually an urgent sign of a mechanical or electrical issue.

The Most Common Reasons Furnaces Trip the Breaker

While there are several possible reasons, most homes run into the same core problems again and again.

When a breaker keeps tripping, it’s rarely random. In most cases, it points to a furnace electrical problem that needs professional diagnosis before it causes damage to the system or your home.

Restricted airflow, dirty components, or failing parts can quickly turn into a furnace overheating issue, triggering safety shutoffs that cut power to protect the system from serious damage.

Dirty Air Filters Restricting Airflow

This is the simplest and most common cause. A clogged filter will choke your system. Air isn’t able to move through the furnace the way it’s supposed to, the heat builds up, the furnace gets too hot, and the safety switch cuts power. Eventually, the breaker pops. If your filter looks like a felt blanket, replacing it might fix the whole issue.

Blower Motor Overload or Failure

When a motor begins to fail or work under excessive strain, it often leads to a blower motor tripping breaker, which is a strong indicator the motor is near the end of its lifespan.

If the blower motor is wearing down, running stiff, or the wheel is clogged with dust, it has to work much harder than normal. That extra strain pulls more electricity than the breaker allows.

You’ll sometimes hear squealing, grinding, or feel weak airflow before this starts happening. When the blower motor starts tripping the breaker, it’s a sign the motor is close to failing.

Short Circuit in Wiring or Control Board

This is where things get potentially dangerous. A short circuit happens when electricity takes a path it shouldn't, usually because wiring is frayed or a control board has burnt spots.

We deal with these electrical furnace issues in Vancouver, WA, pretty often, and one thing we can tell you is that you definitely don’t want to poke around inside the furnace if you suspect this.

Clogged or Blocked Ductwork

If your ducts are clogged, leaking into the crawlspace, or crushed in the attic, your furnace won’t be able to push air where it needs to go. That backup causes overheating inside the system, and you know how that ends.

Failed Capacitor or Ignition System

Capacitors help your blower motor start. When they fail, the furnace pulls more current than it should while trying to fire up. Older systems run into this more often. A failing ignition system can do the same thing. If it’s drawing too much power or too much heat, the breaker will shut everything down.

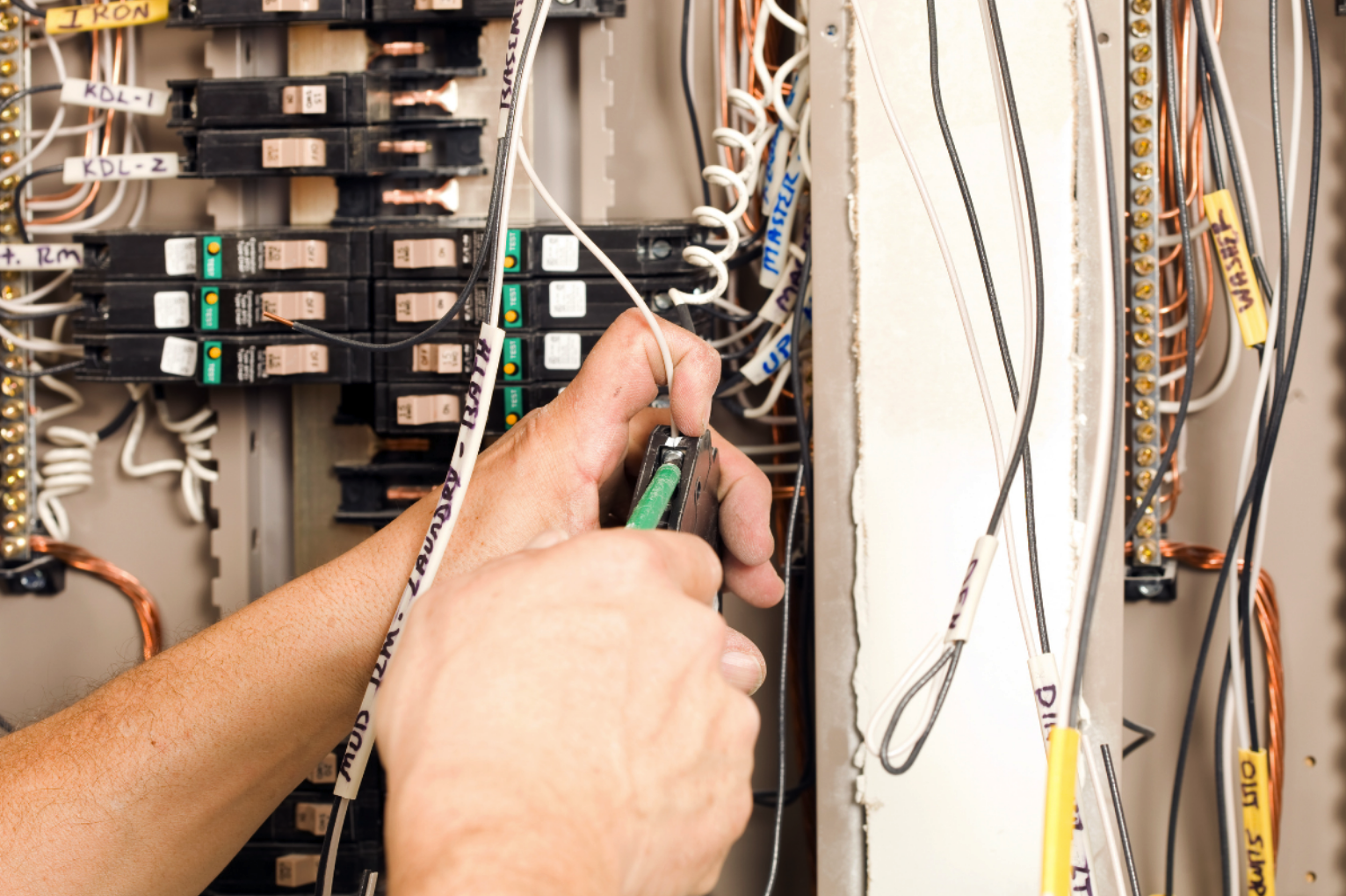

Breaker or Electrical Panel Problems

Sometimes the furnace isn’t the problem at all. If your electrical panel is old, corroded, or using undersized breakers, it can cause constant trips even if the furnace is working correctly. This is a situation where you’ll want a licensed professional who understands both electrical and HVAC systems.

Safety First: What Homeowners Should Not Do

The last thing you want to do is keep flipping the breaker back on repeatedly. If it trips again within seconds or minutes, the furnace is trying to protect itself.

Don’t open furnace panels, don’t try to replace a breaker with a bigger one, and definitely don’t ignore burning smells or buzzing noises. Those are signs of real electrical trouble. The safest thing you can do is shut the furnace off and get a professional to check it.

What You Can Safely Check Before Calling a Technician

There are a few simple checks you can do without risking anything:

You can swap the air filter if it’s dirty. That alone fixes more issues than you’d think. Make sure none of the supply or return vents are blocked, because blocked vents can cause overheating.

Look at the thermostat and make sure it isn’t misreading temperatures or set too high. And take a quick look around the furnace for obvious damage, such as scorch marks, moisture, or anything that looks out of place.

You can try resetting the breaker once. But if it trips again, stop there and give a professional a call.

When It’s Time to Call a Professional

If you're dealing with repeated breaker trips, electrical smells, buzzing from the panel, or a furnace that won’t restart after you’ve reset the breaker, that’s when it’s time to get help.

Once you hit the point where the breaker is popping consistently, this becomes an HVAC and electrical issue. It’s not something you should try to troubleshoot. You need a licensed tech who knows how to safely test wiring, motors, and circuits without risking damage.

How Professionals Diagnose a Breaker-Tripping Furnace

A good technician will start by checking for obvious issues, then work through diagnostic steps to locate electrical or mechanical faults. This includes testing for shorts with a multimeter, measuring the blower motor’s amp draw, inspecting the control board and ignition system, checking duct pressure and airflow, and evaluating the electrical panel for loose breakers, grounding issues, or aging components.

Preventing Breaker Trips in the Future

Once your furnace is back up and running, keeping it healthy is a lot easier if you stay ahead of maintenance. Regular filter changes are super easy, and annual tune-ups can keep your motors, burners, and electrical components clean and working.

Keep your vents open and ducts clear to help your system breathe, and if your furnace is pretty old, replace the worn parts before they fail to save yourself from expensive repairs later on.

Upgrading an older furnace can also be a good move, as newer models use less electricity and put far less stress on your electrical system.

Why Homeowners Trust Miller’s for Furnace & Electrical Troubleshooting

Breaker-tripping furnaces sit right at the intersection of heating and electrical work, and that’s exactly why so many Vancouver and Clark County homeowners call Miller’s. Our licensed technicians understand both sides of the problem.

We move quickly, diagnose accurately, and fix things safely. No upsells, no scare tactics. And since we’ve been doing this since 1947, we know the quirks of older homes in the Pacific Northwest better than anyone.

Don’t Ignore a Furnace That Keeps Tripping the Breaker

Ignoring an issue like this only puts more stress on your system and increases your risk of a serious electrical problem. If your furnace keeps shutting itself off or the breaker keeps flipping, it’s time to call in a professional.

Reach out to Miller’s for quick diagnostics and safe repairs. We’ll figure out what’s causing the issue and get your heat back on in no time.
